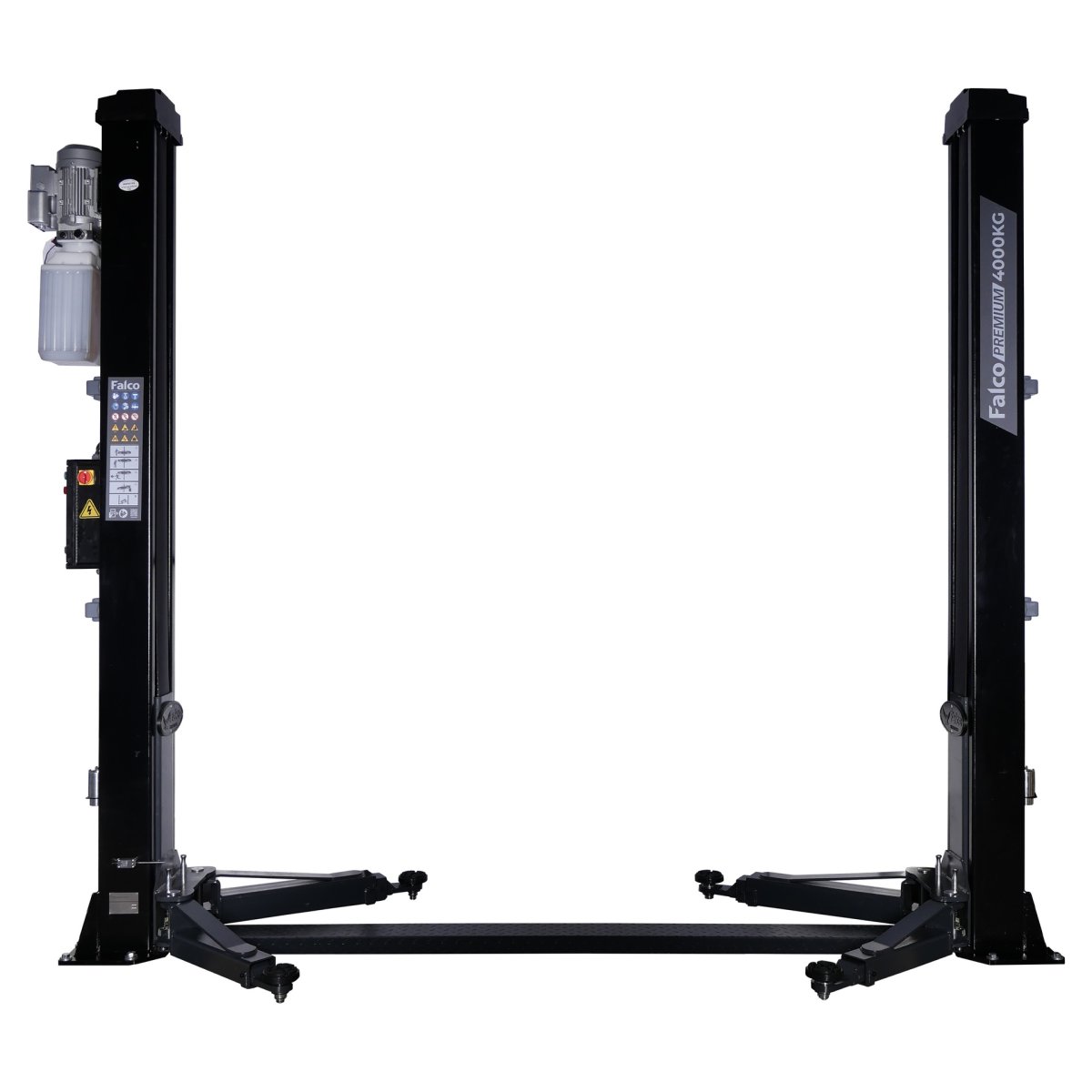

VL35F230 is a two pole bridge with a lifting capacity of 4000kg. The thoughtful design of Falco bridges saves you time and effort. The focus is on ease of use and an efficient work flow. The different models are developed for various applications. This "Premium" fully automatic model is a very complete and reliable model, making the elevator suitable for a large number of vehicles.

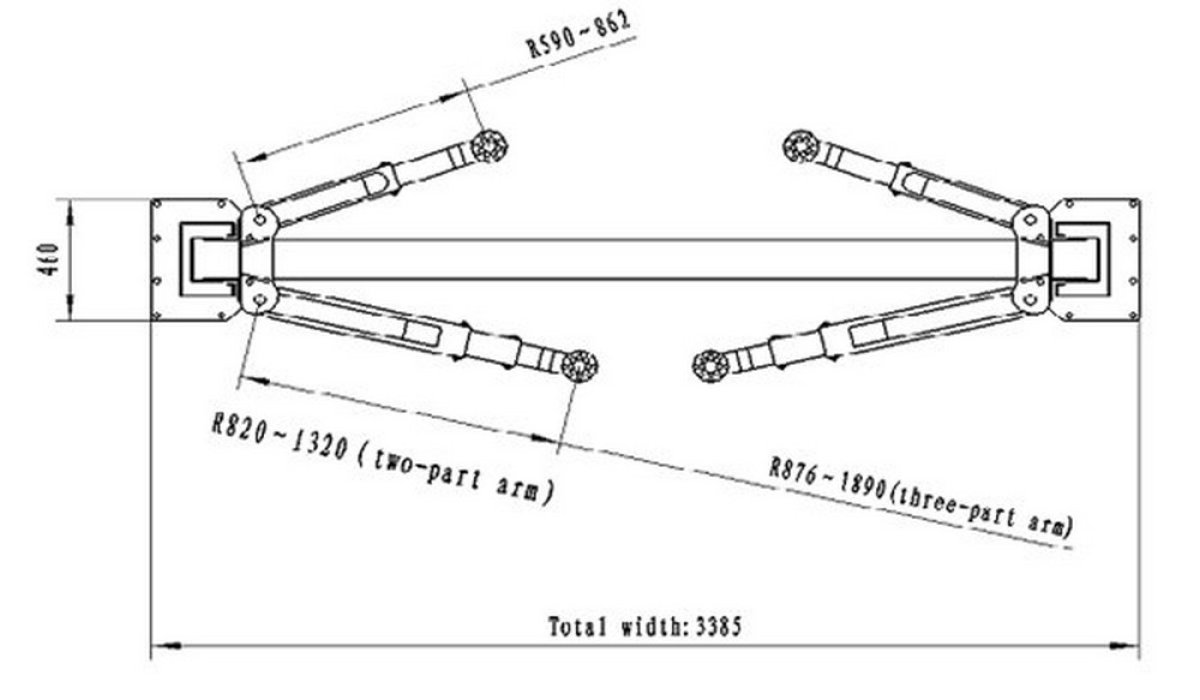

This two post lift is equipped with telescopic extendable support arms which allows you to very easily lift different vehicles at the specified lifting points of the vehicle. After extending, the support arms automatically lock in place for maximum safety. Thanks to the height-adjustable pick-up pads, you can adjust the perfect height before lifting the vehicle. Also, this lift is equipped with deadman control when lifting and lowering and there is an automatic overload protection.
The robust columns are made of rolled steel and are the inner sides of the columns are equipped with a rubber so that the doors of the vehicle can not get damaged. This lift operates at 230 volts making it extremely suitable for persons who do not own a 400 volt circuit.
Features:

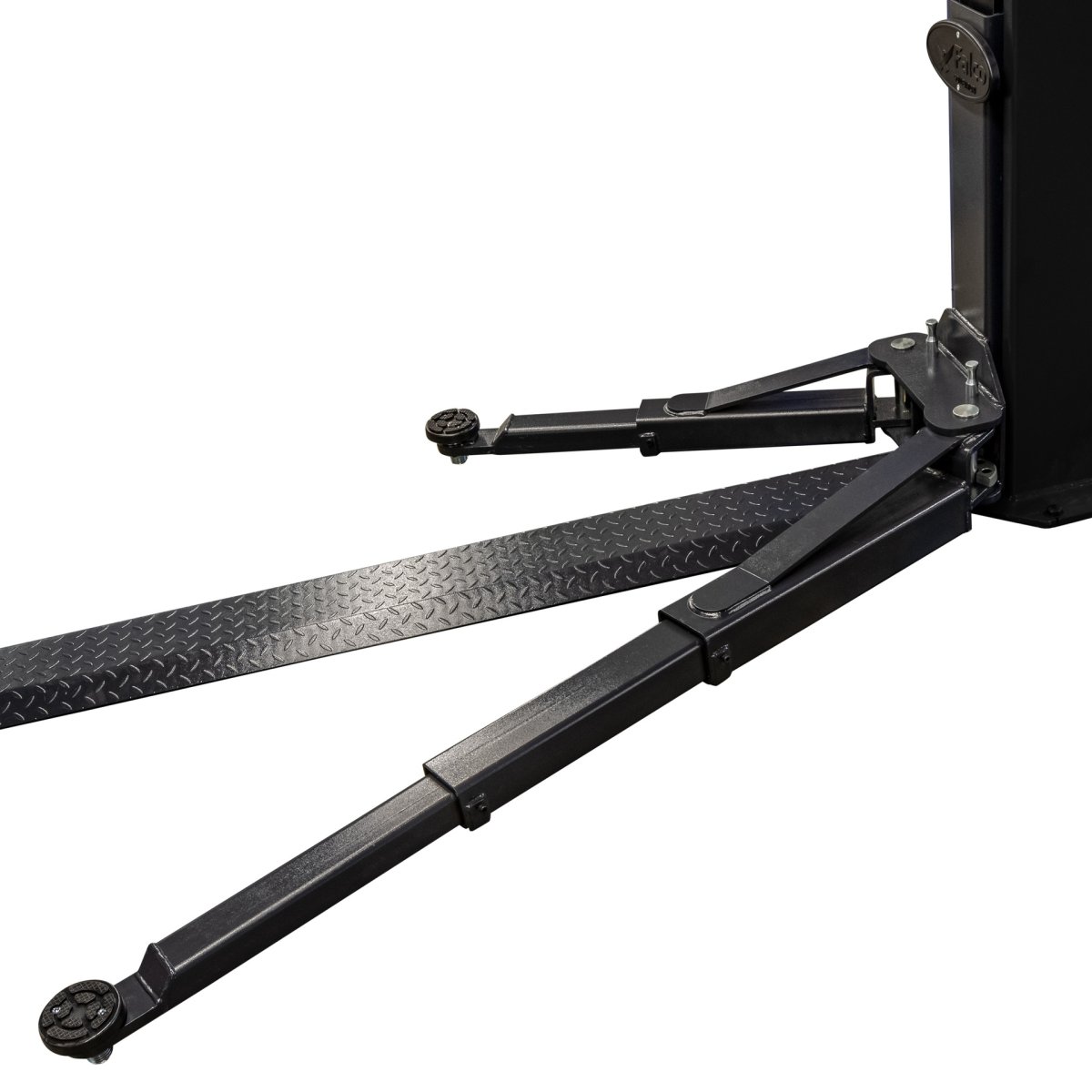

- Dual and triple telescoping extendable support arms
- Steel cable equalization

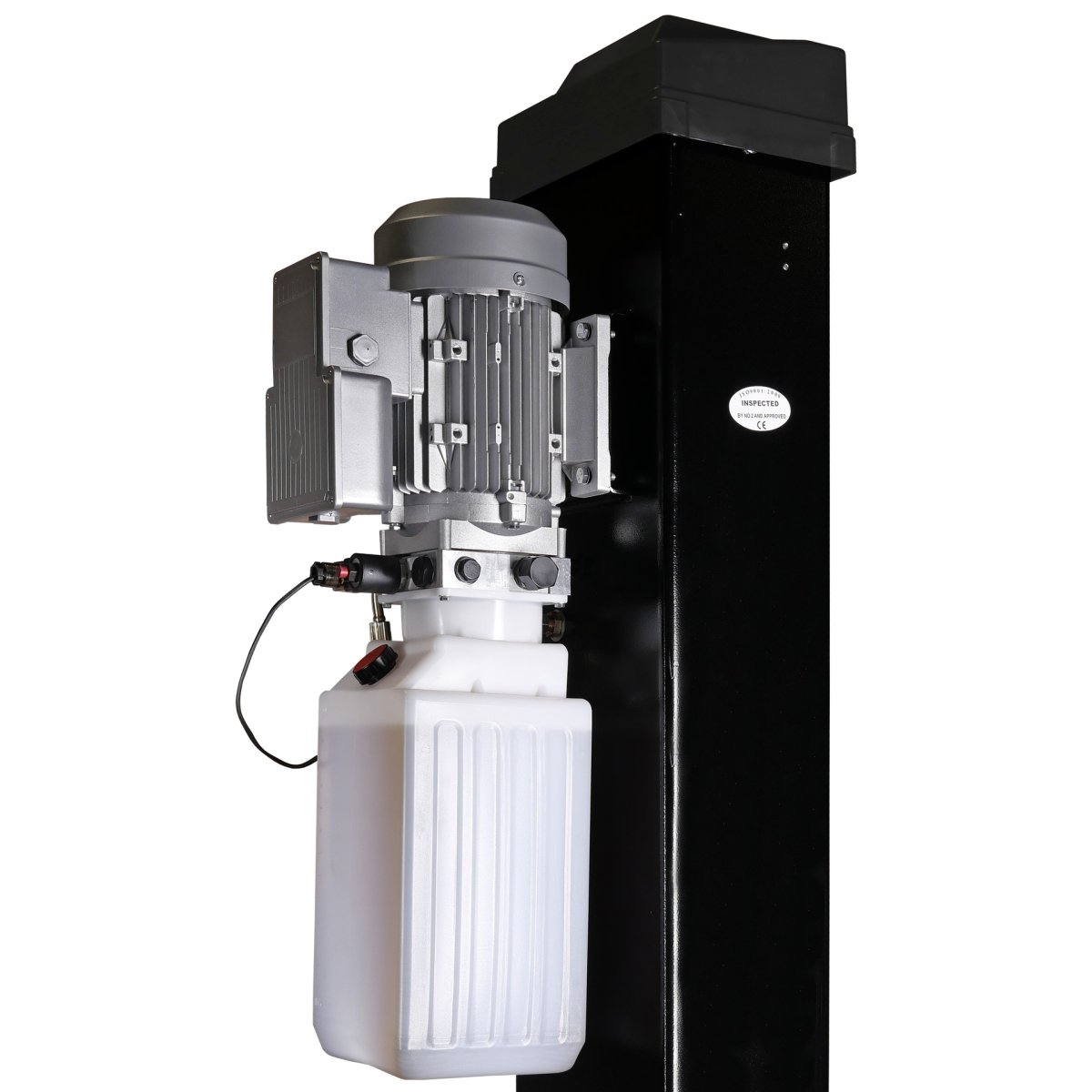

- Quality hydraulic pump incl. cooling fins
- Clear oil tank including oil level
- Foot safety including acoustic safety signal
- Cut-off when highest position is reached
- Height adjustable pick-up pads with double spindles

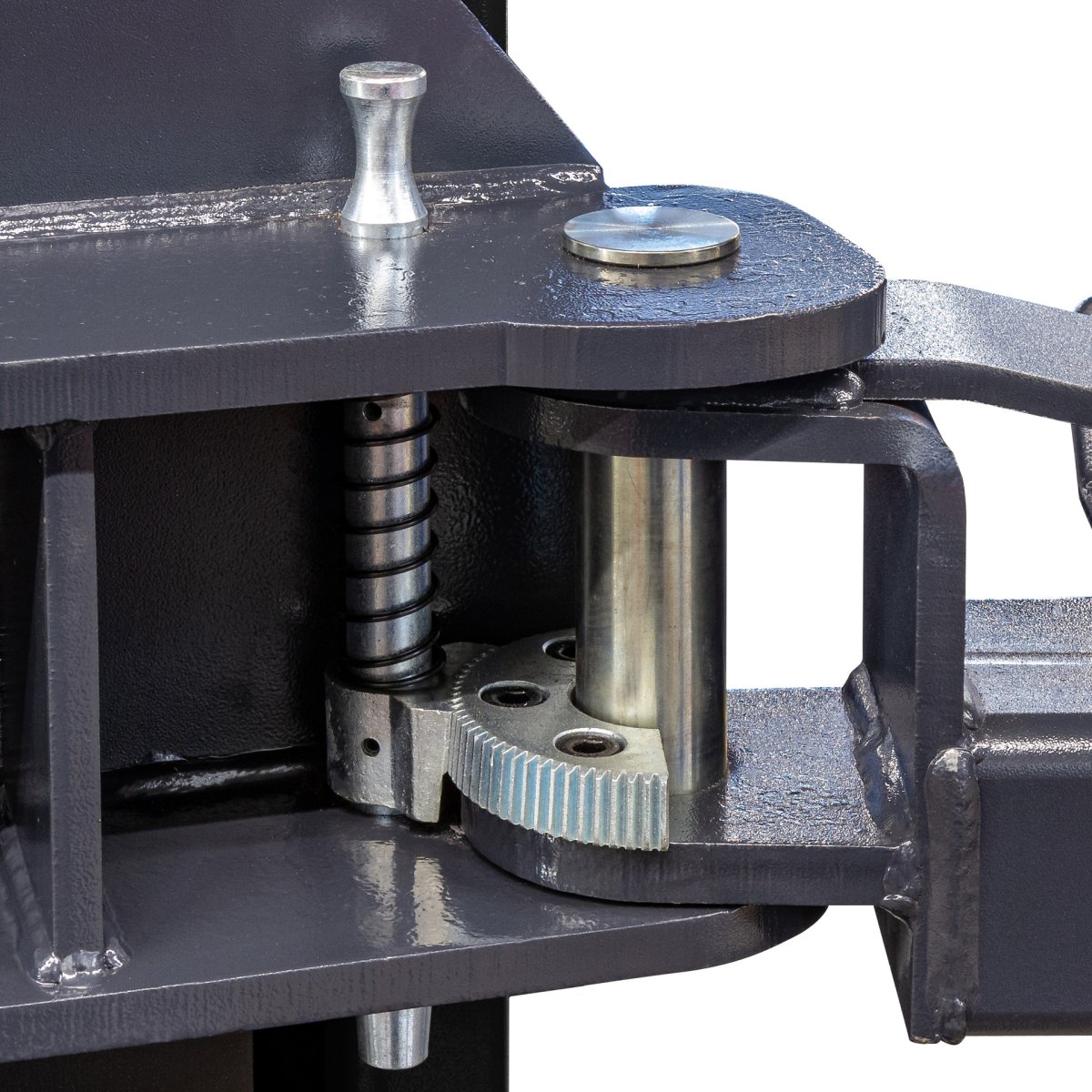

- Automatic arm locking
- Fully automatic electrical braking
- Screen inside column
- Sturdy columns made of rolled steel
- Door stop protective rubbers
- Hydraulic cylinder on both sides
Incredibly low threshold of 45mm
- Extremely low threshold of 45mm

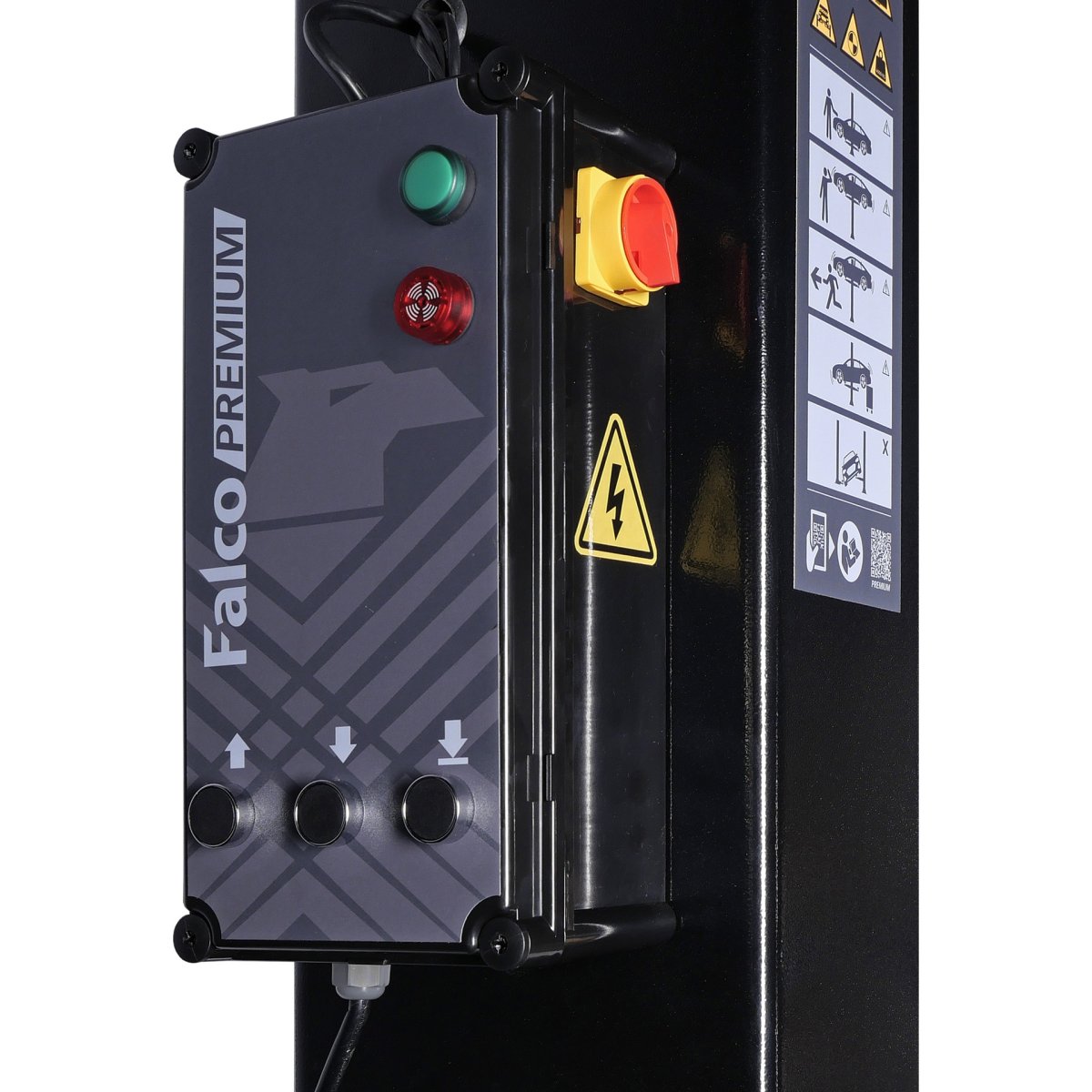

- Dead man operation for lifting and lowering
- Automatic overload protection
- Height limit switch
- 12 heavy duty M18 locking bolts
Technical Specifications:
- Capacity = 4000kg
- Voltage = 230V
- Motor power = 2.2kW

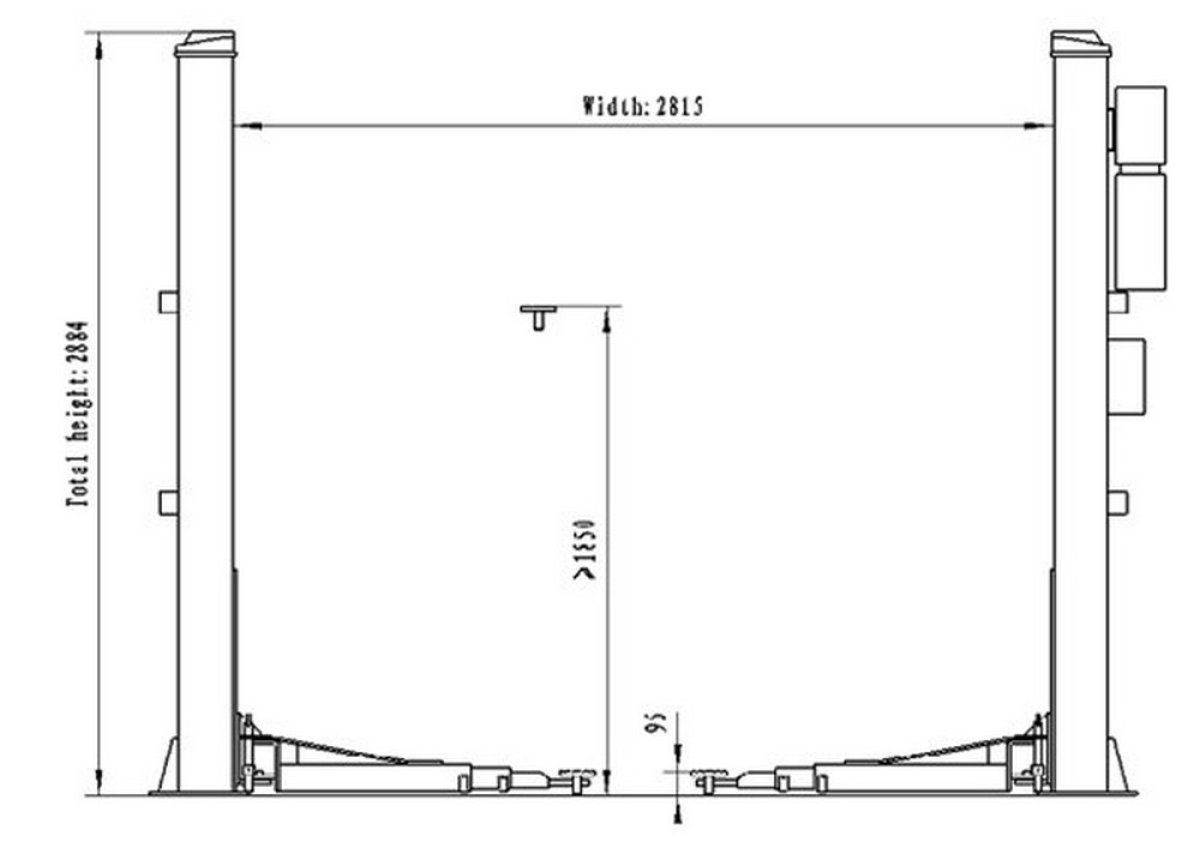

- Min. lift height = 95mm
- Max. lift height = 2050mm
- Range of short arms = 630 - 930mm
- Range of long lifting arms = 830 - 1760mm

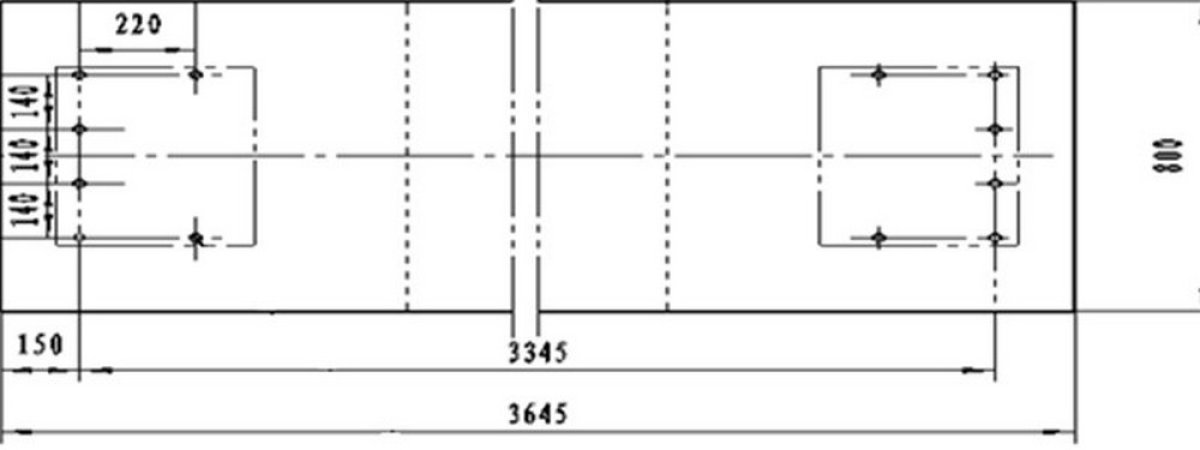

- Distance between columns = 2815mm
- Height of the columns = 2806mm
- Weight = 610kg
- Oil capacity = 10L CH32 (not included!)
All Falco car bridges comply with the NEN-EN1493 safety standard and are supplied with a Dutch manual including maintenance protocol and CE certificate 2006/42/EC.
