TORSO WINCH/ELECTRIC WINCH 12V, 10M, 1814KG

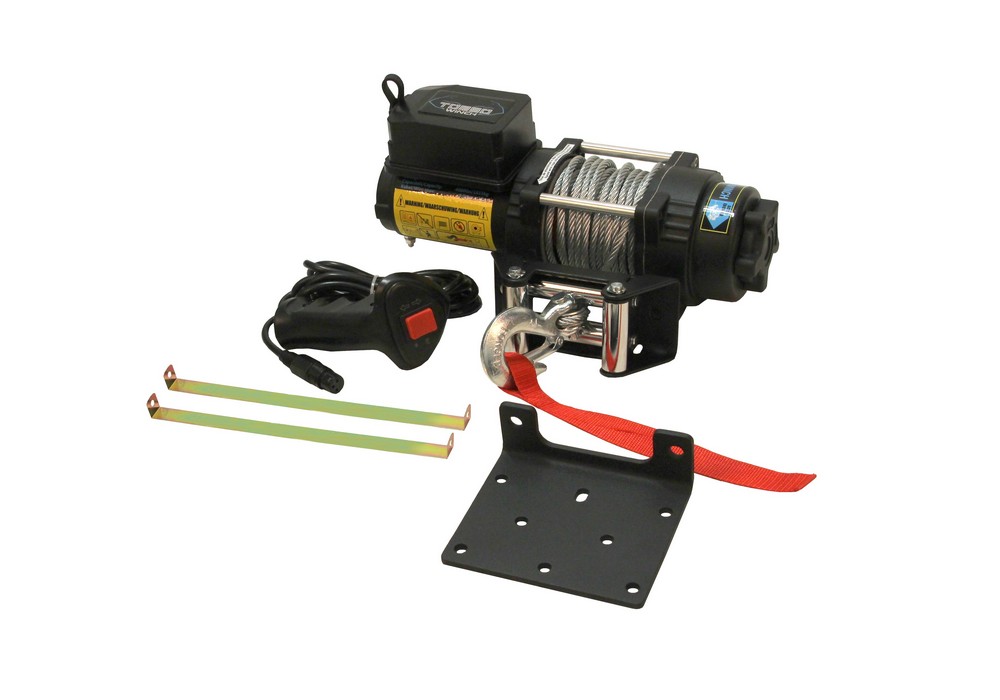

This winch from Torso is a reliable and robust bumper winch specifically designed for quad/buggys/trailers. The electric winch is suitable for various applications within towing and towing as long as they fall within the weight class. The winch has a cable length of 10 meters and can pull a weight of up to 1814 kg. Thanks to the remote control with cable you can operate the winch very easily, there is even possibility to make the remote control wireless using an adapter piece. The winch comes with mounting place, hook, remote control and pulley.





Contents:

- 4-way roller window, for excellent cable routing

- Mounting plate, ensures correct mounting of the winch

- Remote control, for electric forward and reverse operation of the winch. The control is equipped with 3mtr cable

- Mounting hook including lip

- 1.5m connection cable for the battery

- Manual freewheel

- Automatic brake in case of power failure

- 1.5 tonne pulley



Wireless remote control is possible, see section view also.



Technical specifications:

- 12V single line

- pulling force = 4000lbs (1800kg)

- reduction = 198:1

- series wound motor = 12V 1.6HP

- drum size = 50x76.5mm

- cable length = 10m

- cable diameter = 6mm

- tensile force = 0kg, 454kg, 907kg, 1800kg

- line speed = 4.9mpm, 3.2mpm, 2.8mpm, 1.5mpm

- amp pulling force = 17A, 70A, 105A, 180A

- layers of cable = 1, 2, 3, 4

- tensile force per layer = 1800kg, 1460kg, 1225kg, 1055kg

- cable length per meter = 2m, 4.3m, 7.2m, 10m

- Mounting dimensions center to center = 125 x 75mm



The specification of tensile force is an approximation, actual load depends on surface, slope, weather conditions and rolling weight.
