PRESSOL MANUAL STANDARD GREASE PUMP

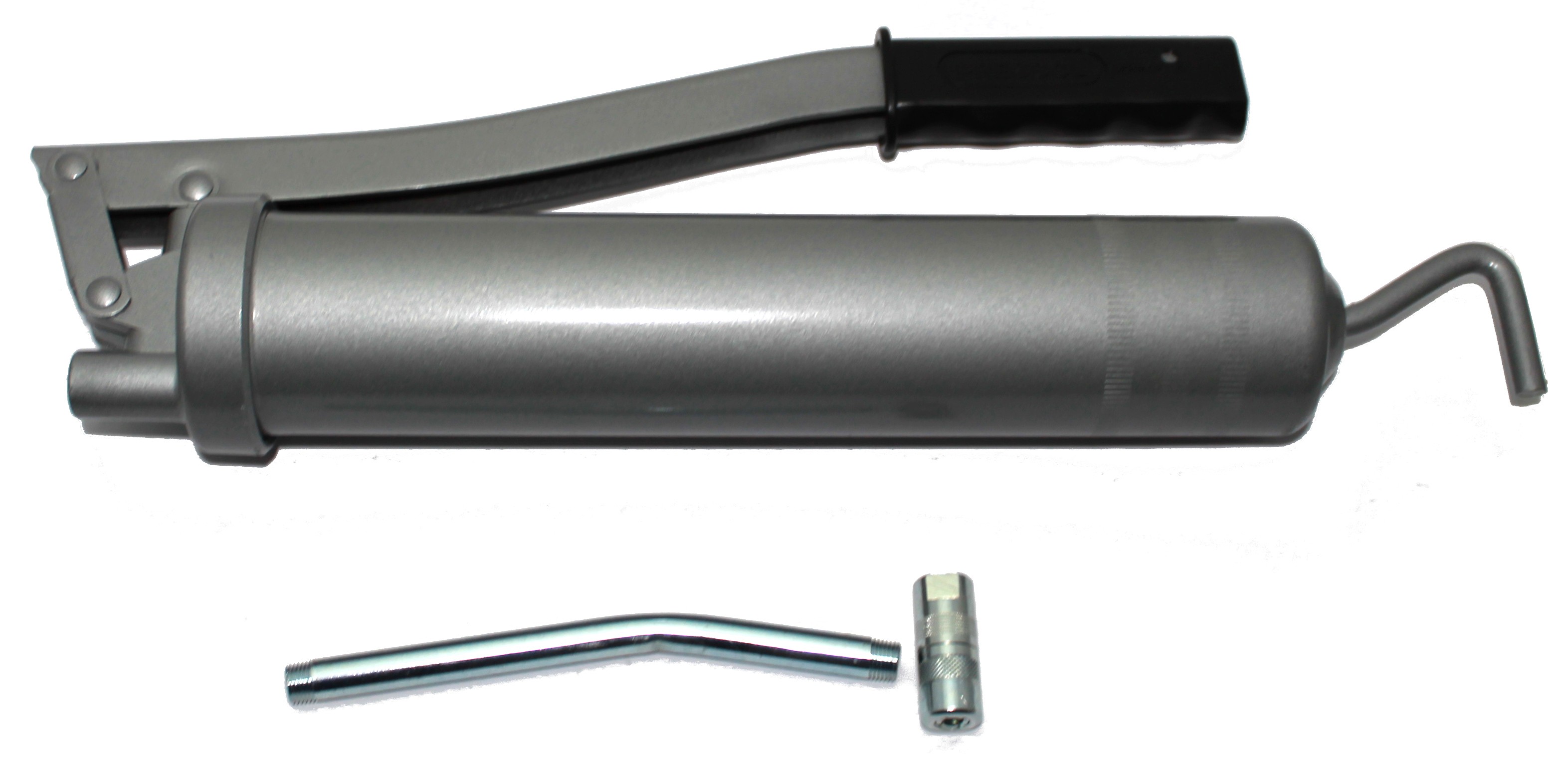

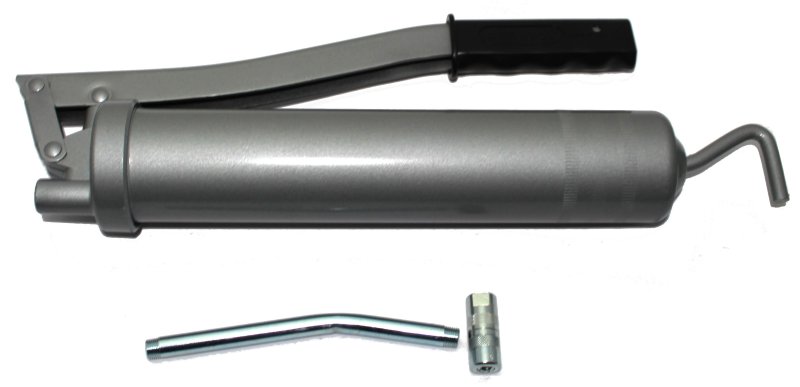

With the help of this grease gun you can apply the desired amount of grease to the surface. You can fill the grease gun with cartridges of 400 gr but you also have the option of using loose bulk grease. This standard Pressol grease gun works with grease up to class NLGI 2. Thanks to the supplied angled spout and hydraulic coupling, you can apply the grease neatly.


Features:

- Grease gun

- Including slanted spout, M 10 x 1, 150 mm (12 635)


- Includes hydraulic coupling, M 10 x 1 female (12 631)



Special Notes:

- Works with greases up to NLGI class 2 at 20°C

- Plunger with precise fitting when using bulk grease or cartridge

- TÜV - certified

- Pump piston with high accuracy of adjustment to the cylinder (no apparent lubrication)

- Performance unchanged after 40,000 operating cycles

- Grease gun head, zinc die casting Z 410

- Good grip due to deep belt edges

- Secure handle on the push rod

- Non-slip handle on the grease gun handle

- The plunger rod clamp on the end cap allows manual pressure to be applied to the spring to compress bulk grease or to press the plunger into damaged cartridges.

- Low effort required for lubrication due to optimum leverage efficiency

- Fast ventilation, with half a rotation of the lubricating pistol tube



Technical data:

- Capacity: 500

- Filling method: 400 gr grease cartridge or bulk grease

- Grease piston diameter: 8 mm

- Manual operation with lever

- Lubricating speed/stroke: 1.2 cm³ at a back pressure of 400 bar

- Press pressure up to 400 bar

- Burst pressure system: 850 bar

- Burst pressure grease nozzle: 1200 bar

- Weight: 1.28 kg
