TRAINSWAY TIRE BALANCER AUTOMATIC, MAX 24 INCH

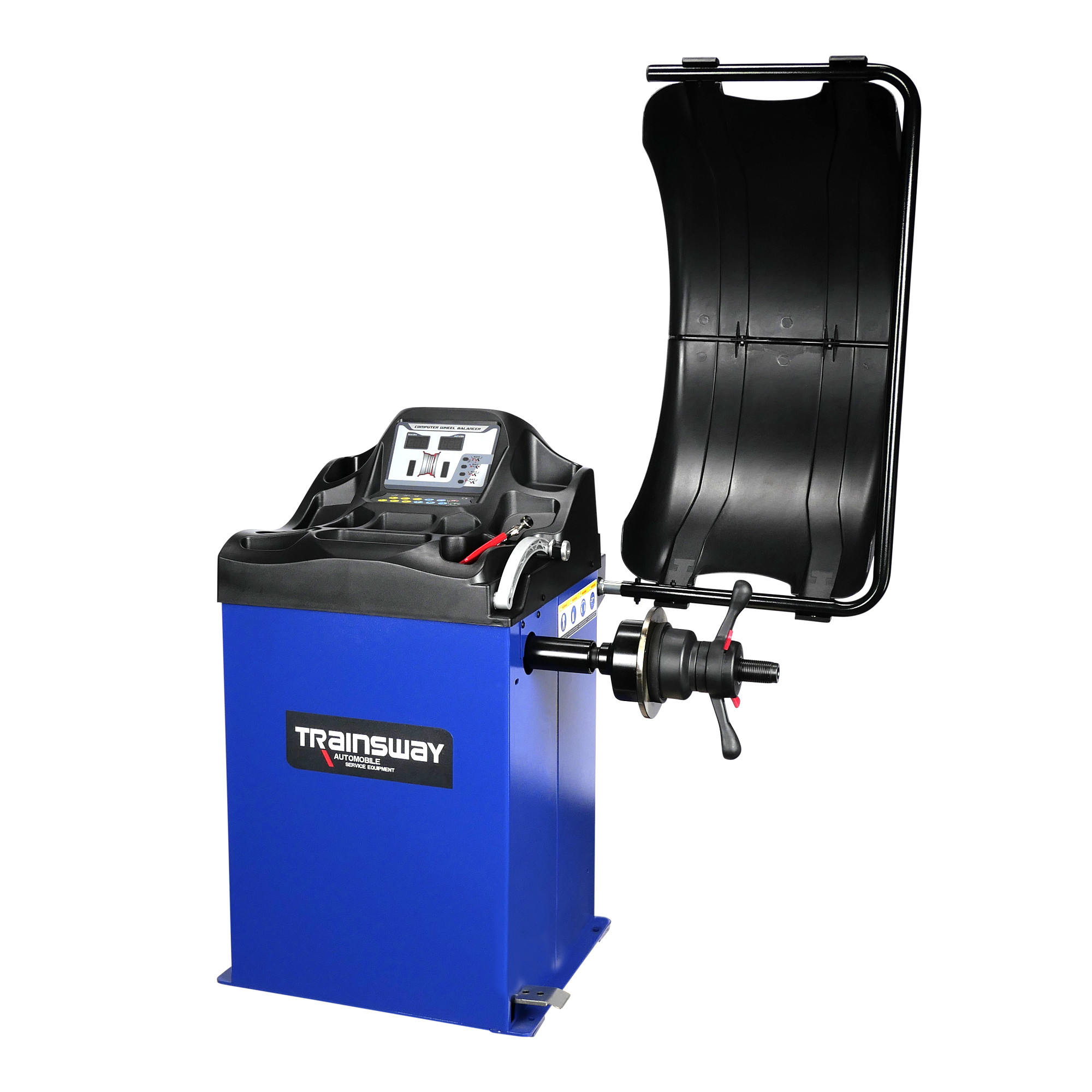

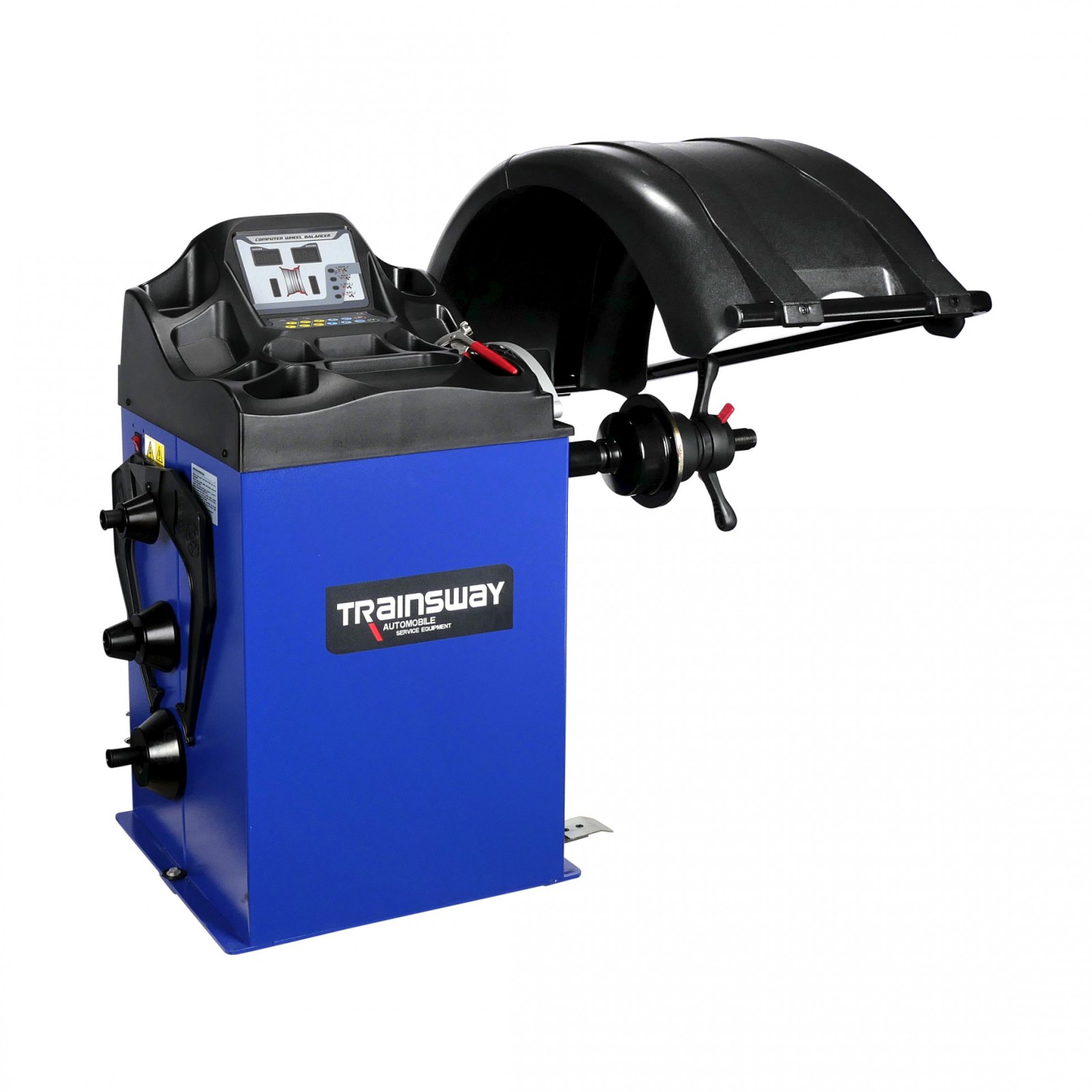

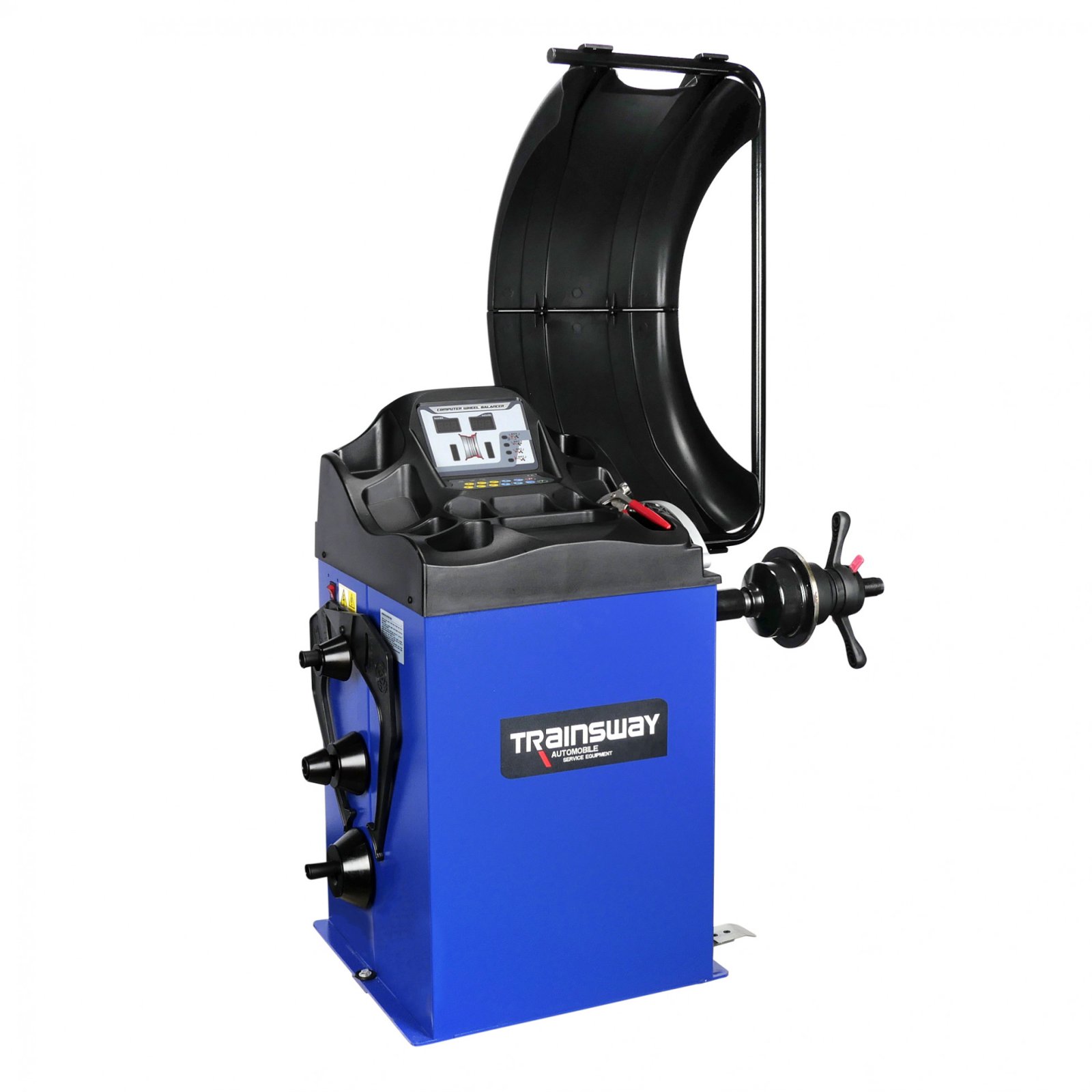

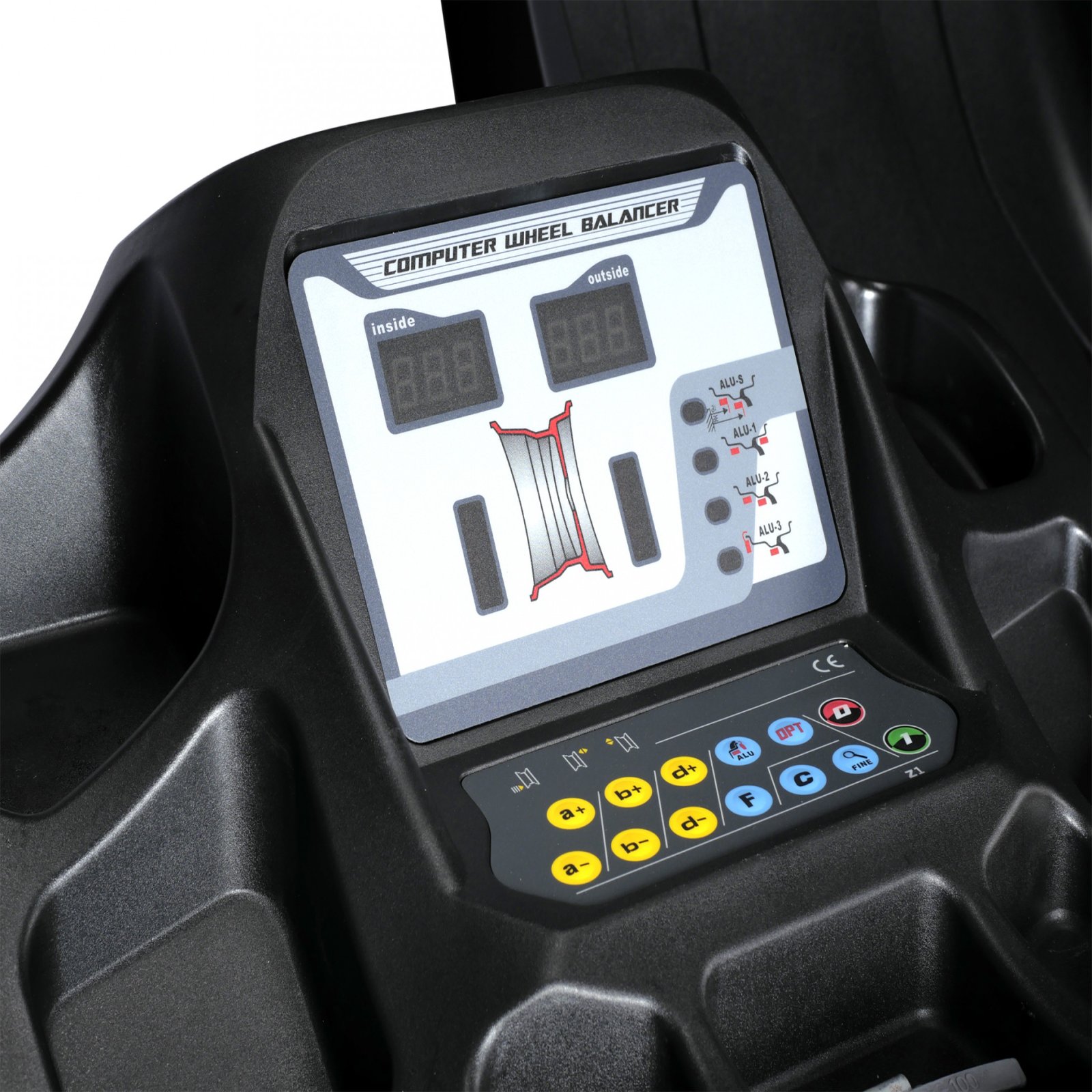

ZH825B is a tire balancer from Trainsway that is suitable for balancing all common passenger car wheels. The wheel balancer is equipped with different balancing programs that you can set depending on the type of rim. Thanks to the digital display with push buttons this device is very easy to use, no complicated menus, just buttons.



This wheel balancer is supplied with different cone sizes, wheel lead pliers, 100gr calibration weight, rim width gauge and mounting clamp.



Adjustable programs:

- Balancing program for steel rims

- 4 programs for aluminum rims

- Static and dynamic balancing

- Alu special mode for deviating rims

- Manual wheel data entry

- Start/stop function

- Self calibration program

- Switchable protective cap



Technical specifications:

- Max. wheel weight: 65kg

- Motor power: 0.2kW / 0.37kW

- Power supply: 230V

- Balancing accuracy: 1g

- Balancing speed: 200rpm

- Rim diameter: 10"- 24"

- Rim width: 1.5" - 20"

- Type: ZH825B (SBM95)

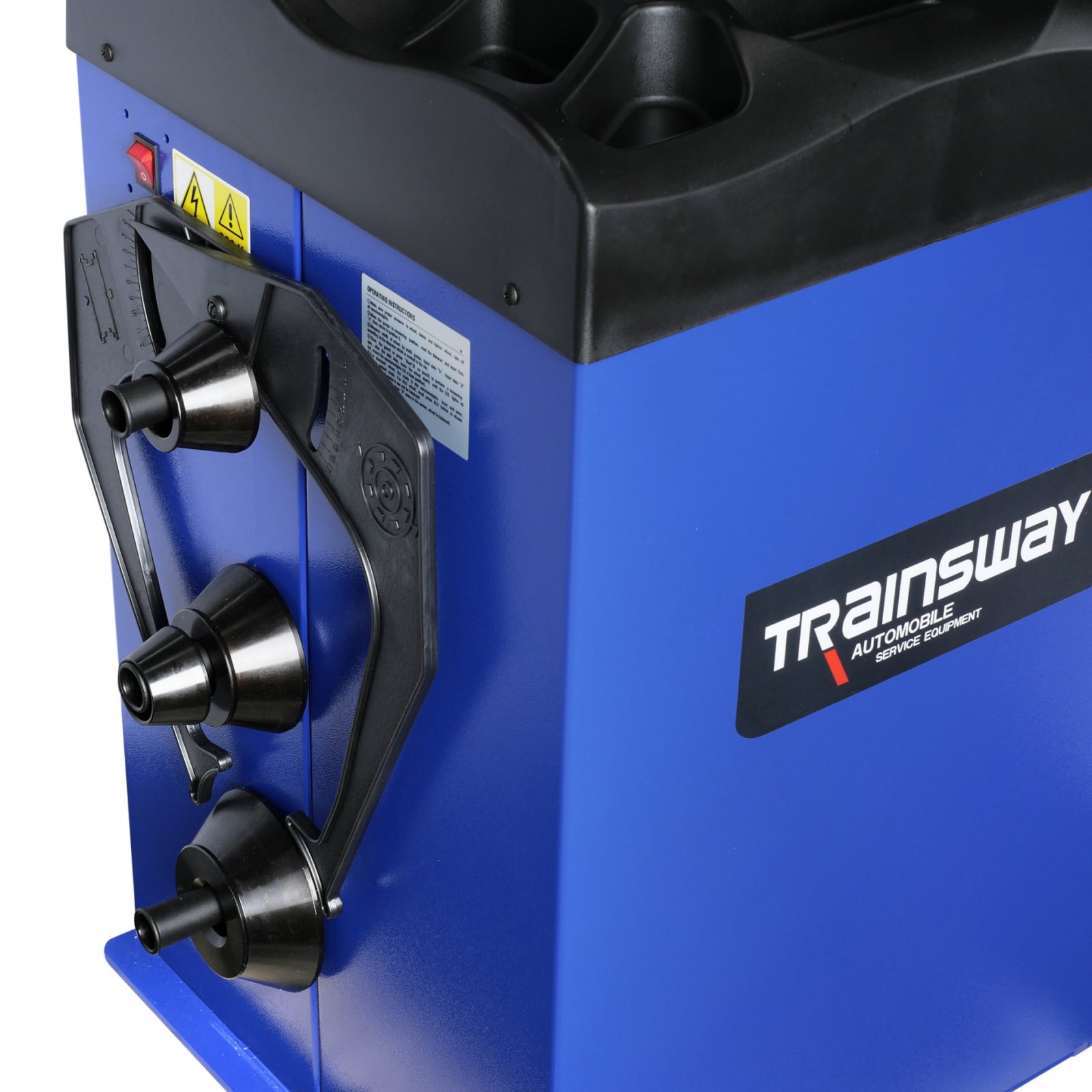

Max - Min cone size:

- 65mm - 45mm

- 80mm - 55mm

- 110mm - 75mm

- 135mm - 95mm

All cones have a shaft size of 36mm.



Standard accessories included:

wheel pliers, 100gr calibration weight, cone set, rim width gauge, mounting clamp

Additional options for blind rims and motorcycle wheels available.
