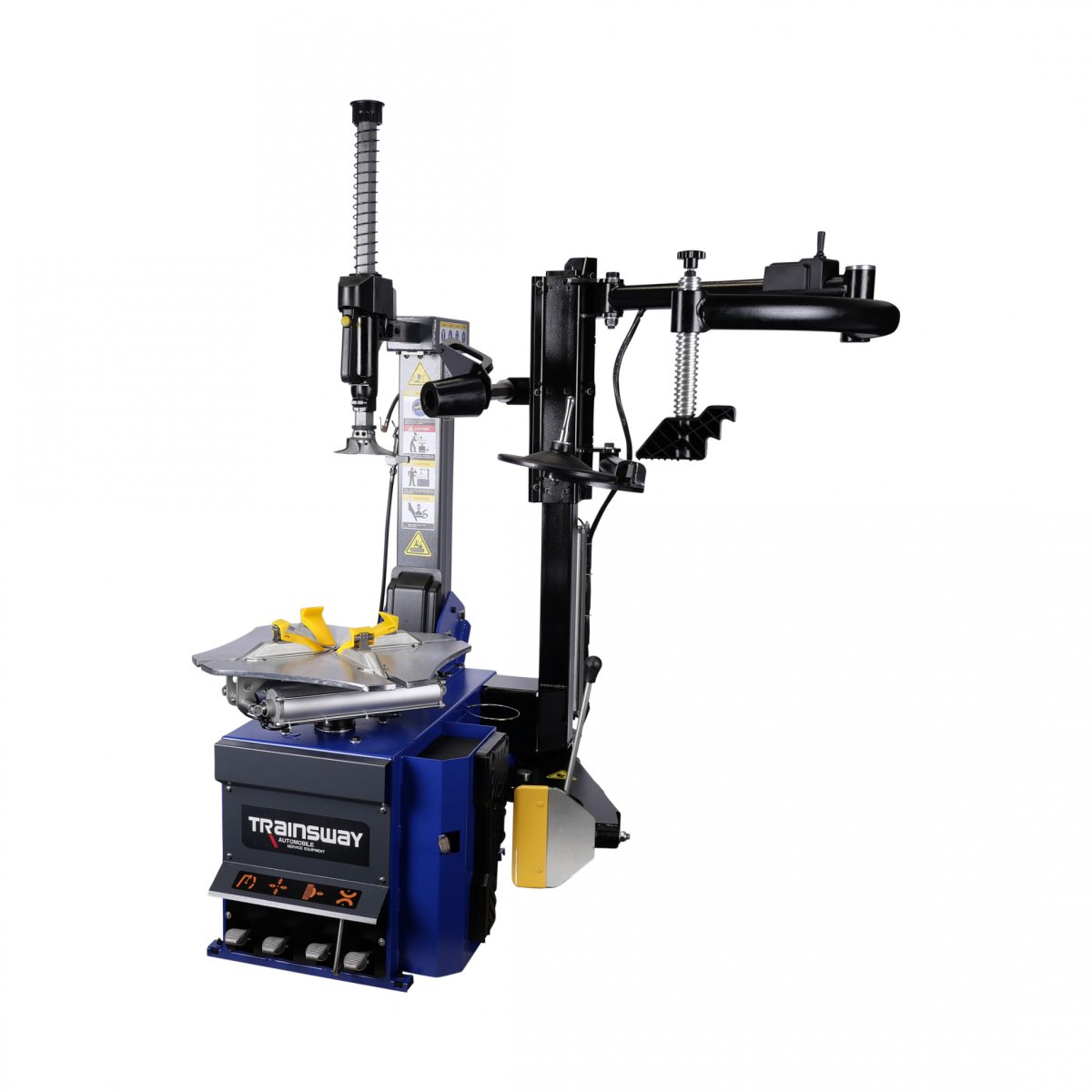

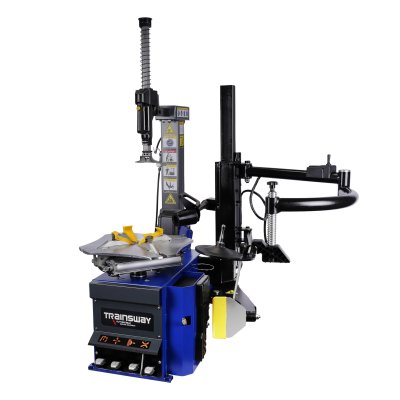

TRAINSWAY TIRE DEMOUNTING MACHINE WITH AUXILIARY ARM, MAX 41 INCH

ZH650F is a fully automatic tire mounting machine with auxiliary arm from Trainsway that is suitable for mounting and dismounting car tires. The ideal machine for the small workshop or service station. This fully automatic tire changer is equipped with a tilting column for intensive use. In addition, the machine is equipped with an auxiliary arm and an extra reinforced chassis with double function for easy mounting and dismounting of low profile tires. This tire machine is ideally suited for very wide and stiff tires.



Technical specifications:

- Voltage: 230V

- Motor power: 1.1 / 0.75Kw

- Force: 2500kg

- Air pressure: 8 - 10 bar

- Clamping capacity outside / rim diameter: 10'' - 21''

- Clamping capacity rim/inner rim diameter: 12'' - 24''

- Max. wheel diameter: 41" (1040mm)

- Wheel height: 14'' (355mm)

- Type: ZH620F



Packaging dimensions:

- Packaging length (mm): 1380

- Packaging width (mm): 900

- Packaging height (mm): 850

- Packaging weight (kg): 330



All our Trainsway machines are supplied with a clear NL-language manual including certificate. The machines comply with the latest 2006/42/EC Machinery Directive standard.


Standard accessories included:


Tire lever, oiler, alu-rim accessory set, tire gauge, hose.
