REQUAL REQ1015 | REQUAL 2-POST LIFT 3.2T MONOPHASE (230V) |INCLUDING ASSEMBLY AND INSPECTION

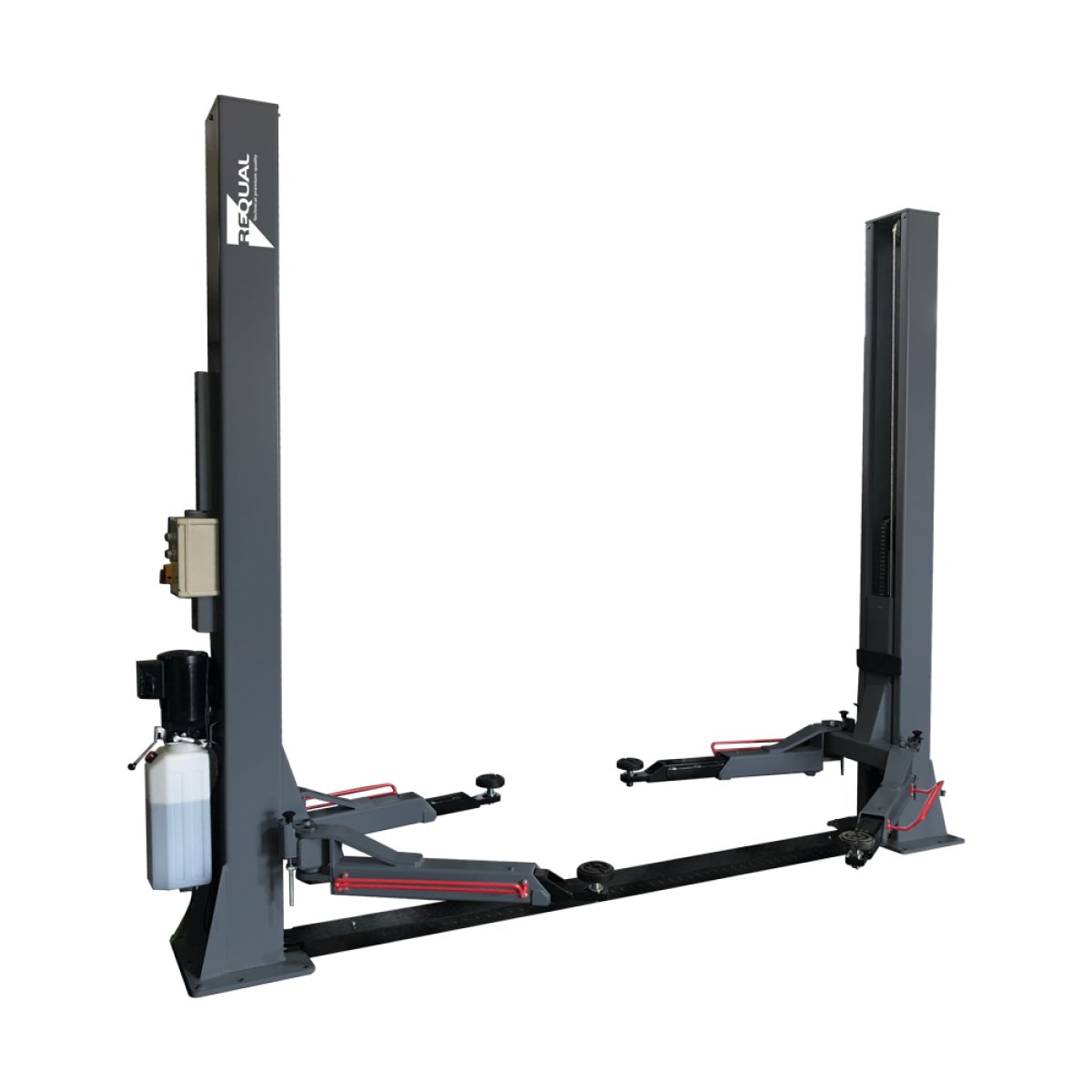

Requal REQ1015 Twin Pole Lift 3.2 T - The perfect workhorse for your garage!



Are you looking for a solid, reliable and efficient solution for lifting cars and vans? Then look no further than the Requal REQ1015 Twin Pole Lift. With its sturdy electro-hydraulic construction, this lift offers a fixed installation securely attached to the ground, allowing you to safely lift and position vehicles.



Its ability to reach a maximum height of 1780mm in just 75 seconds makes it one of the fastest in its class. Synchronized steel cables and cylinders ensure smooth and even lifting motion. The bridge also features a manual lowering valve and electronic locking for added safety. With the included 80mm rise and 135mm diameter lift pads, you are assured versatility and adaptability for different vehicles.



Best of all? The purchase of the REQ1015 Twin Pole Lift includes delivery, installation and ACEG certification. A product manufactured according to the European Directive 2006/42/CE and the harmonized standards EN1493:2010 and EN60204-1:218.

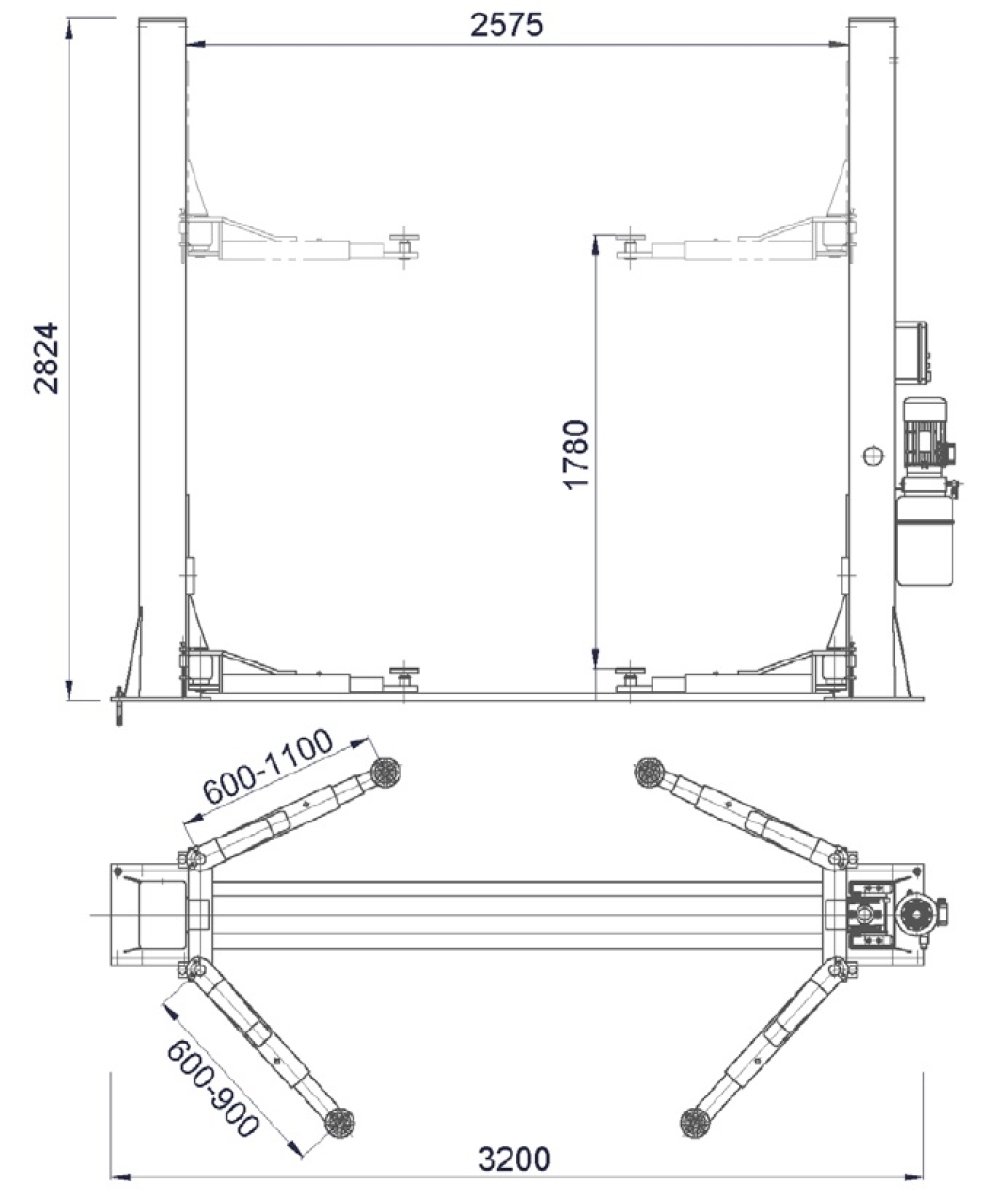

Technical Properties:

- Capacity: 3200kg

- Maximum lifting height of car: 1780mm

- Lift height tripod min: 100 mm

- Overall width: 3200 mm

- Side cover for overall width: 0.270 mm

- Maximum length of long arm: 1100 mm

- Minimum length of long arm: 600 mm

- Short arm maximum length: 900 mm

- Minimum short arm length: 600 mm

- Rise time with single-phase motor: 75 seconds

- Descent time: 18 s ≤ t ≤ 40 s

- Total deck weight: approx. 700 kg

- Noise: 70 db ≤ (A) at 1m distance

- Operating temperature: 5℃/40℃

- Working environment: enclosed space

- Relative humidity: 90%

- Maximum altitude: 3500m



Take your garage to the next level with the Requal REQ1015 Twin Pole Lift!
