REQUAL REQ1009 | REQUAL SCISSOR LIFT 3T SINGLE PHASE (230V)|INCLUDING ASSEMBLY AND INSPECTION

Requal REQ1009 Scissor Lift: The New Heart of Your Garage



In the dynamic world of automotive maintenance, efficiency is crucial. With the Requal REQ1009 Scissor Lift, we offer an advanced solution that matches your high standards. This lift is a game-changer for garages that strive for top quality and precision.



The REQ1009 is designed to accommodate a wide range of vehicles. With an impressive load capacity of up to 3 tons, it can effortlessly handle virtually any vehicle weighing less than 3000 kg. The minimum lift height of 110mm to a generous 1900mm offers optimal flexibility for a variety of jobs.



The four hydraulic cylinders ensure smooth and reliable operation, while the mechanical safety and pneumatic safety lock ensures a safe working environment. In addition, the horizontal blocking of the ramps allows the platforms to be extended, providing additional flexibility for larger vehicles.



Features:

- Load capacity: 3 tons (max. vehicle weight < 3000 kg)

- Lifting height: Minimum 110mm, maximum 1900mm

- 4 Hydraulic cylinders with mechanical safety

- Pneumatic safety lock

- Horizontal blocking of ramps

- Complies with European Directive 2006/42/EC and harmonized standards EN1493:2010, EN60204-1:2006+A1:2009

- Includes CE certificate

- Accessories: 4 rubber blocks (160x120x40mm) and 4 rubber blocks (180x120x95mm)



And as icing on the cake, the purchase of the Requal REQ1009 Scissor Lift includes not only delivery and installation, but also the ACEG certification of the lift.



Upgrade your workshop with the Requal REQ1009 and experience the difference in quality and efficiency!

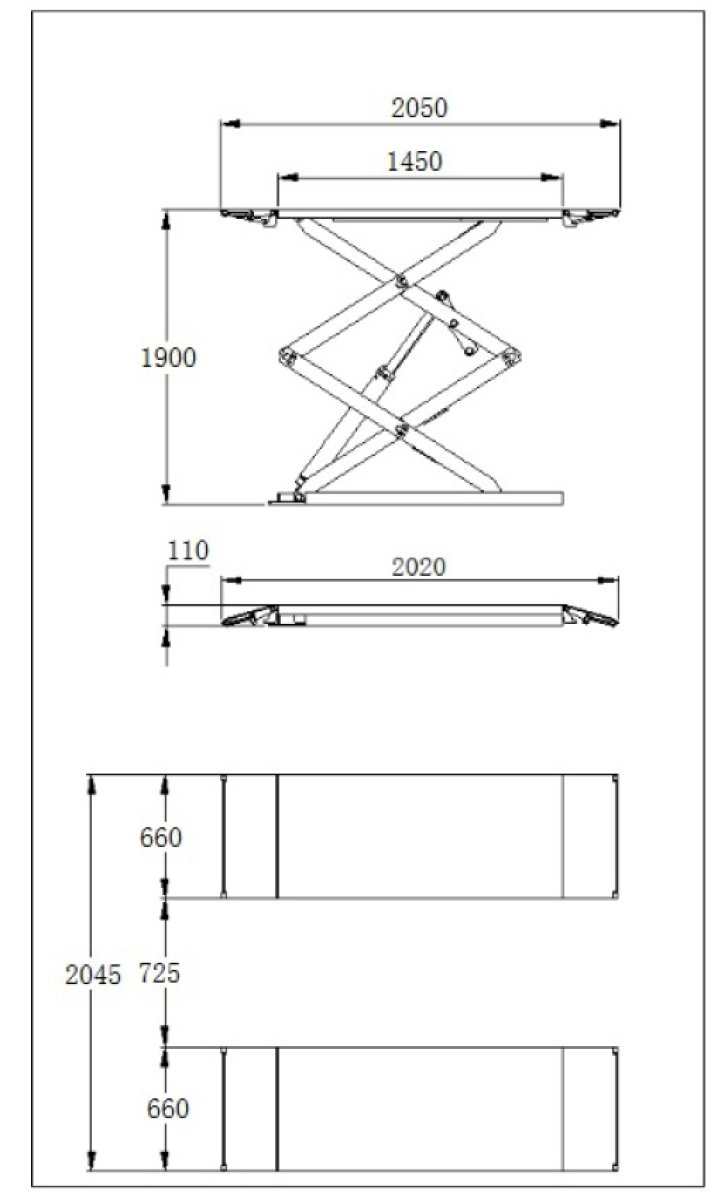

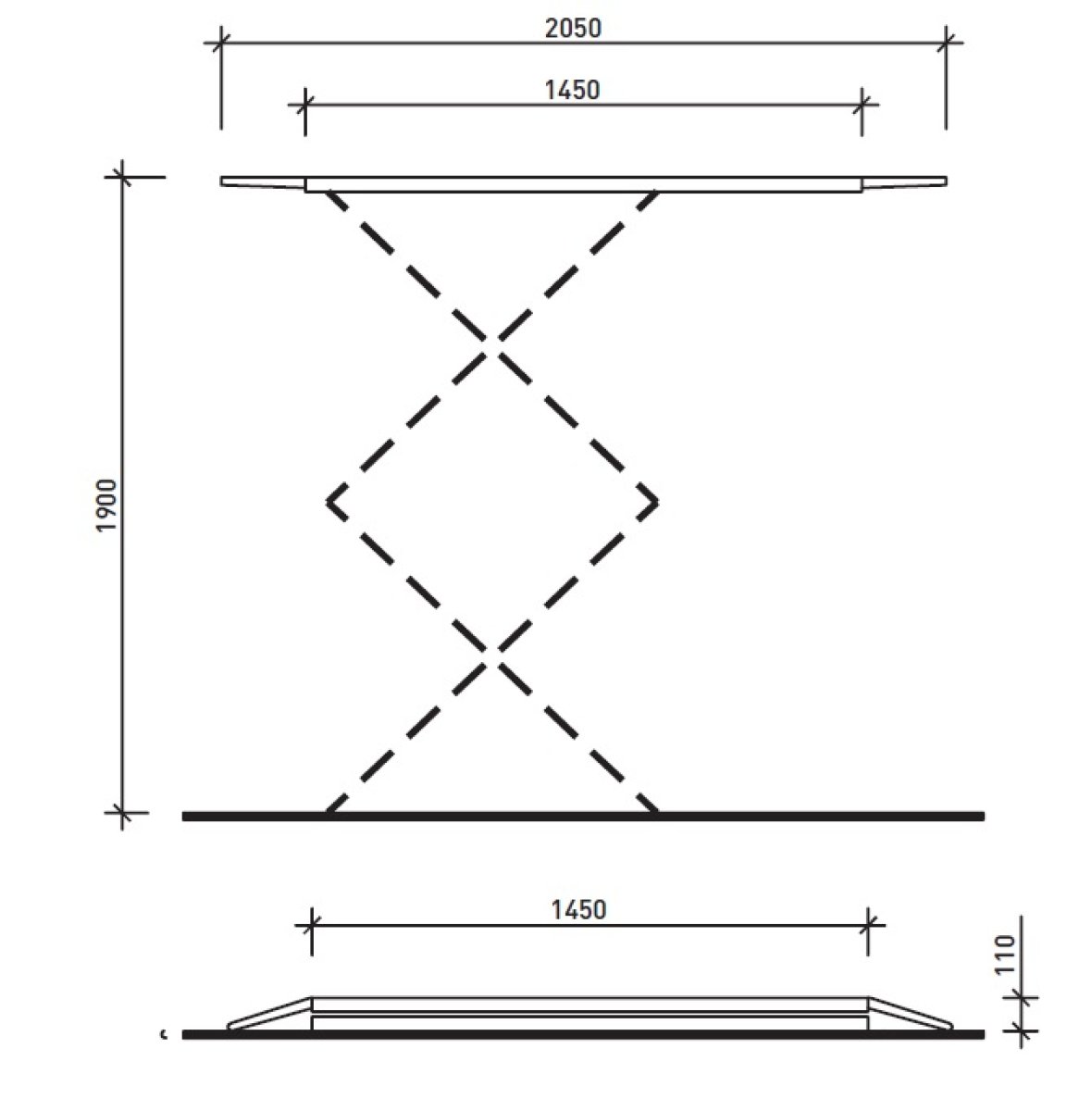

Technical features:

- Lifting capacity: 3000 kg

- Lifting height: 1900 mm

- Initial platform height: 110 mm

- Platform length: 1450-2050 mm

- Platform width: 650 mm

- Lift time: ≤55 s

- Descent time: ≤55 s

- Total bridge length: 2045 mm

- Total bridge width: 2020 mm (635+750+635 mm)

- Power: 1PH~230V, 50Hz, 10A

- Total power: 2.2 kw

- Hydraulic oil: 16 L hydraulic oil

- Air pressure: 6-8 kg/cm²

- Operating temperature: 5-40ºC

- Control humidity: 30-95 %

- Noise level: < 70 db

- Power supply: 230V
