REQUAL REQ1010 | REQUAL SCISSOR LIFT 3T THREE PHASE (3X400V)|INCLUDING ASSEMBLY AND INSPECTION
Ref: REQ1010 -
6190,-
vat incl.
Less than 3 in stock
Delivery period: 1 day
In stock
Reflection period 14 days
Free shipping from € 50.00 (BE)

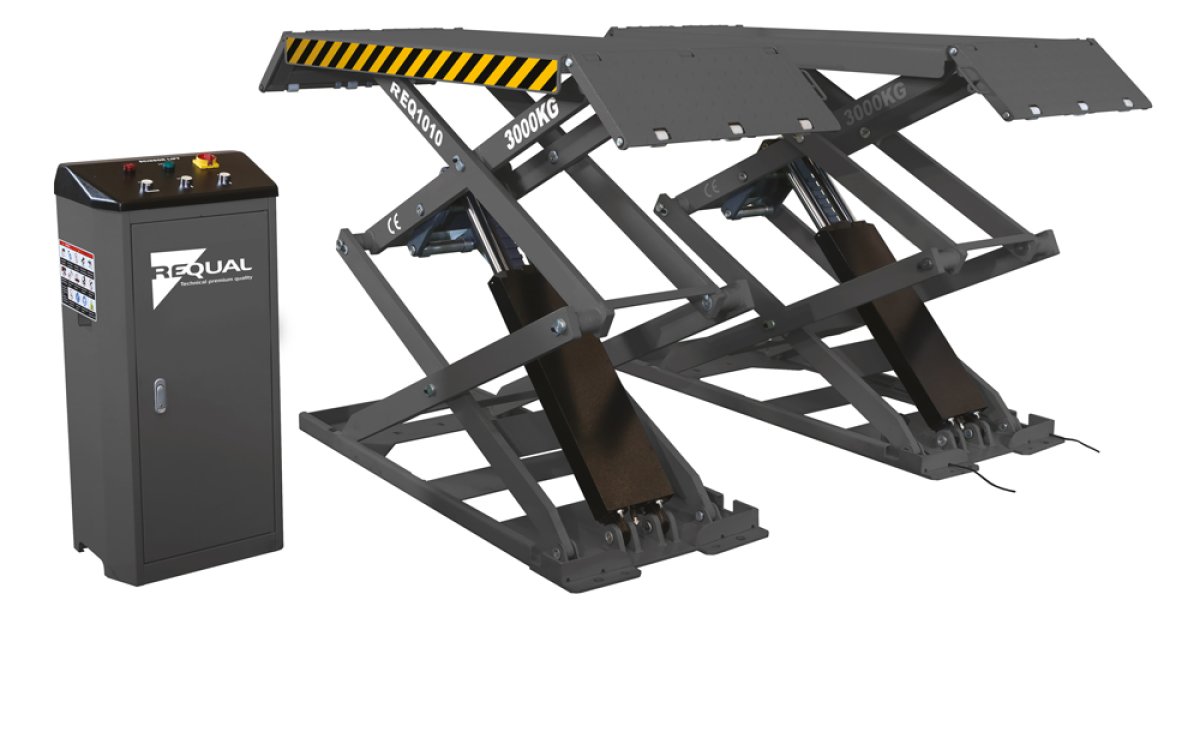

Requal REQ1010 Scissor Lift: The New Heart of Your Garage



In the dynamic world of automotive maintenance, efficiency is crucial. With the Requal REQ1010 Scissor Lift, we offer an advanced solution to match your high standards. This lift is a game-changer for garages that strive for top quality and precision.



The REQ1010 is designed to accommodate a wide range of vehicles. With an impressive load capacity of up to 3 tons, it can effortlessly handle virtually any vehicle weighing less than 3000 kg. The minimum lift height of 110mm to a generous 1900mm offers optimal flexibility for a variety of jobs.



The four hydraulic cylinders ensure smooth and reliable operation, while the mechanical safety and pneumatic safety lock ensures a safe working environment. In addition, the horizontal blocking of the ramps allows the platforms to be extended, providing additional flexibility for larger vehicles.

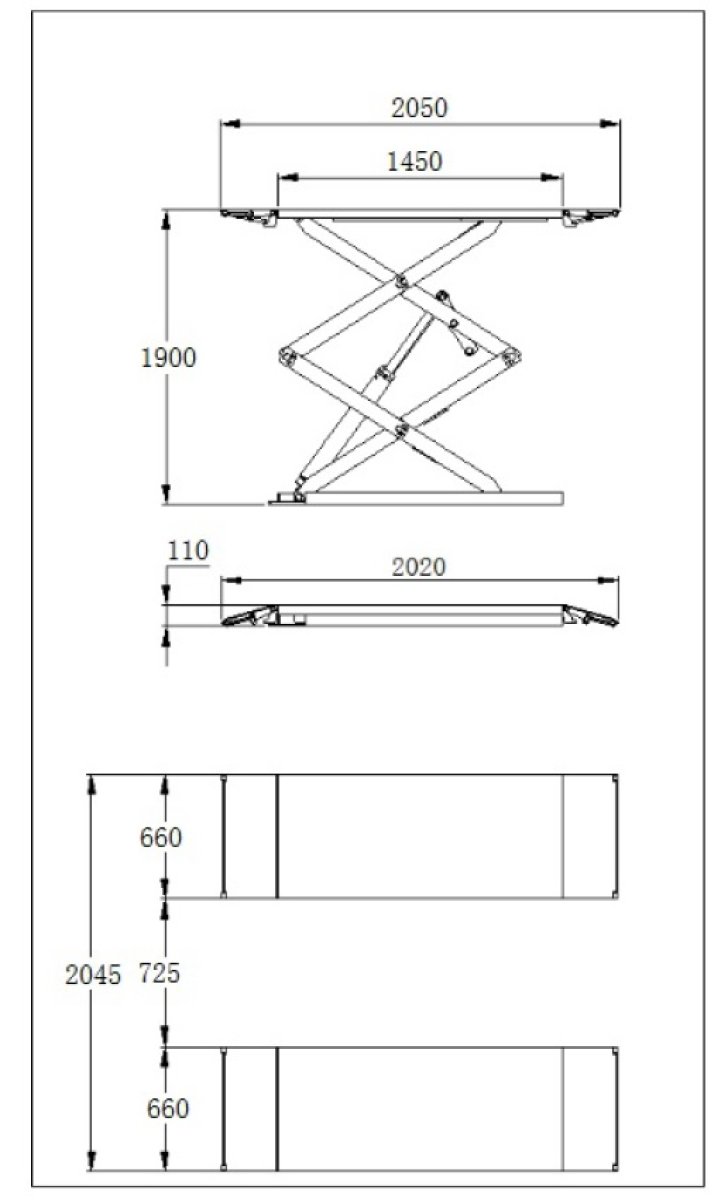

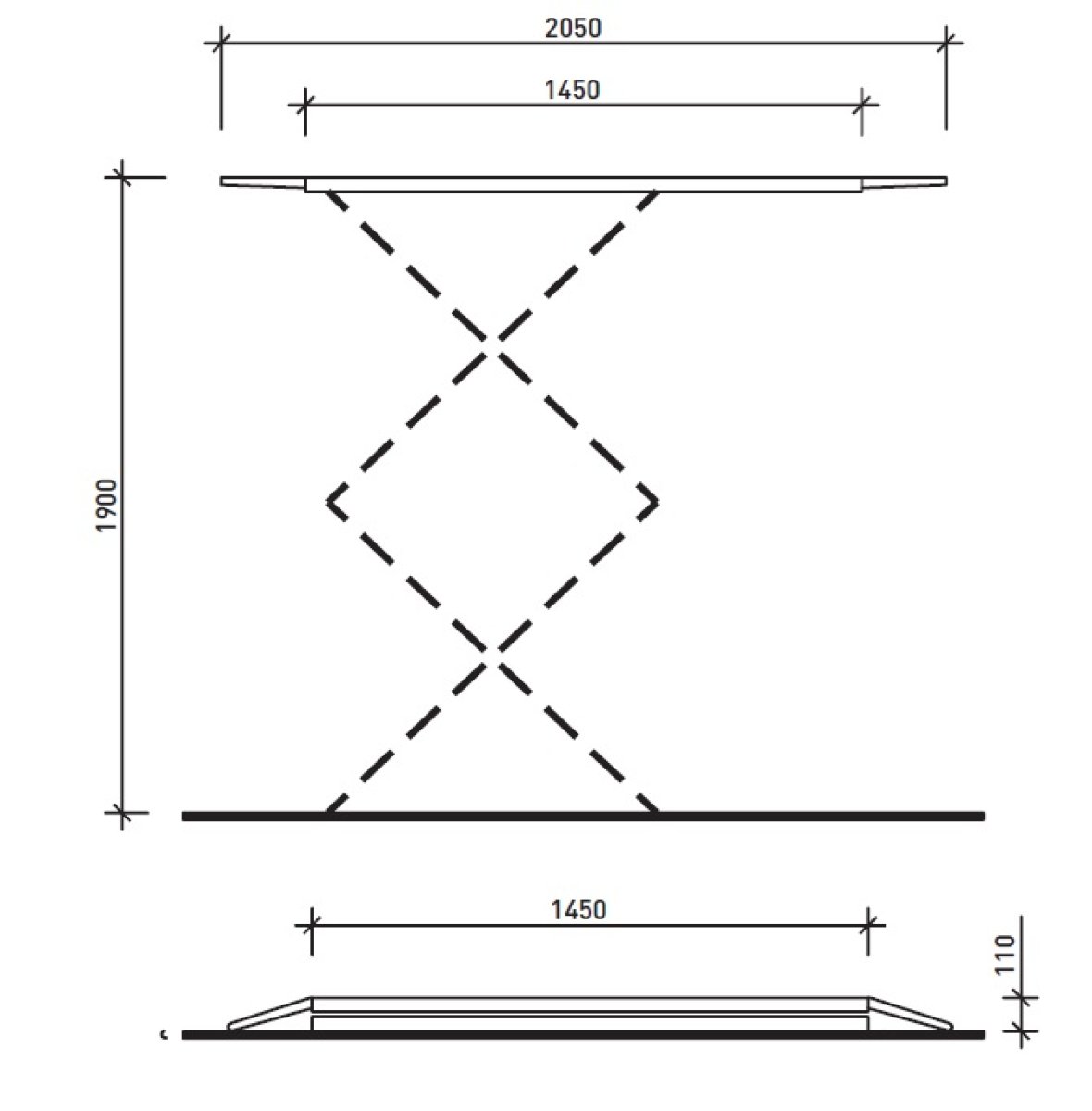

Technical Features:

- Load capacity: 3 tons (max. vehicle weight < 3000 kg)

- Lifting capacity: 3000 kg

- Lifting height: 1900 mm

- Initial platform height: 110 mm

- Platform length: 1450-2050 mm

- Platform width: 650 mm

- Lift time: ≤55 s

- Descent time: ≤55 s

- Total bridge length: 2045 mm

- Total bridge width: 2020 mm (635+750+635 mm)

- Power: 1PH~230V, 50Hz, 10A

- Total power: 2.2 kw

- Hydraulic oil: 16 L hydraulic oil

- Air pressure: 6-8 kg/cm²

- 4 Hydraulic cylinders with mechanical safety

- Pneumatic safety lock

- Horizontal blocking of ramps

- Complies with European Directive 2006/42/EC and harmonized standards EN1493:2010, EN60204-1:2006+A1:2009

- Includes CE certificate

- Noise level: < 70 db

- Power supply: 3x400V

- Accessories: 4 rubber blocks (160x120x40mm) and 4 rubber blocks (180x120x95mm)



And as icing on the cake: the purchase of the Requal REQ1010 Scissor Lift includes not only the delivery and installation, but also the ACEG certification of the lift.



Upgrade your workshop with the Requal REQ1010 and experience the difference in quality and efficiency!
